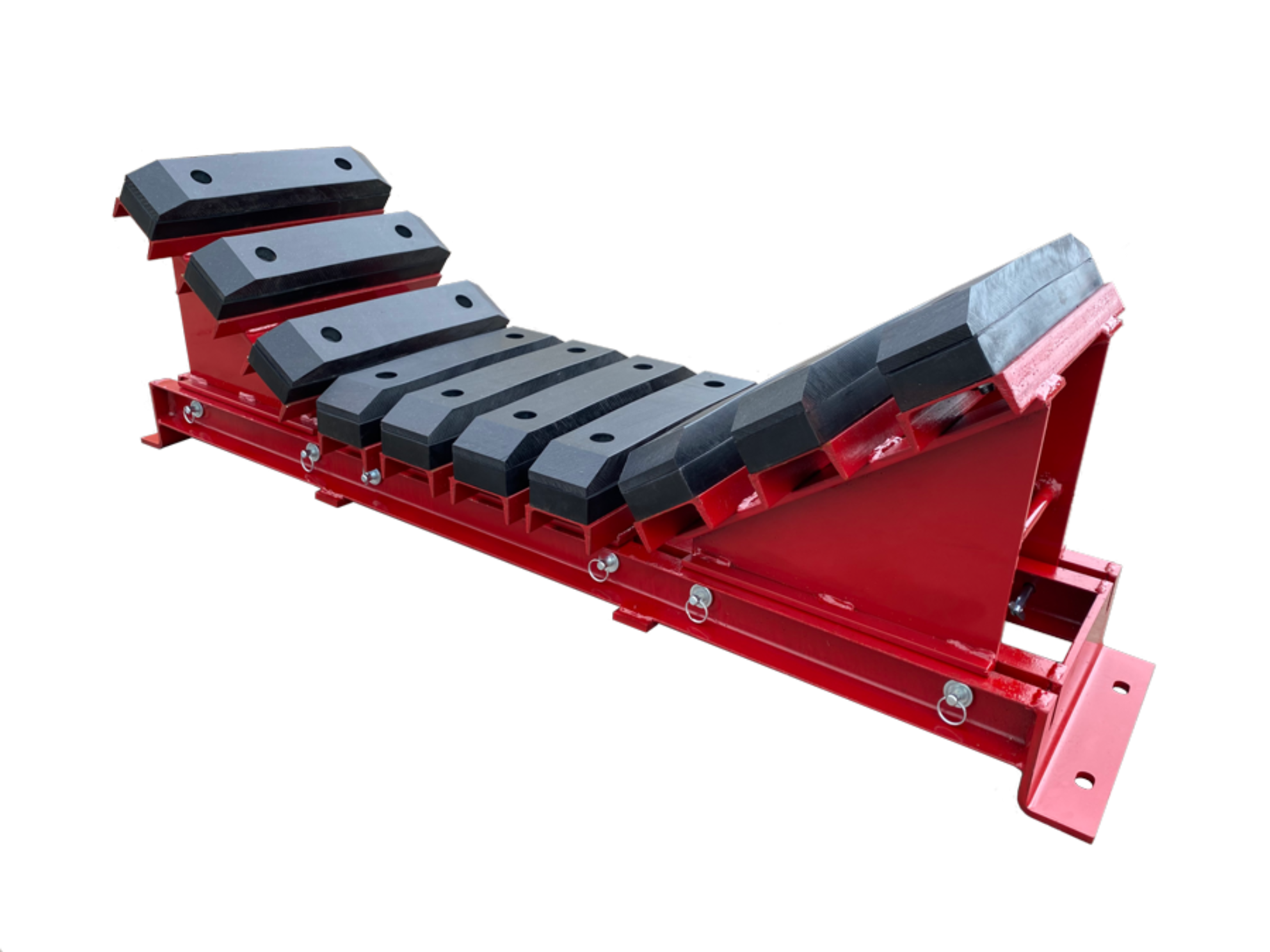

A Conveyor Impact Bed Wear Strip is a component used in conveyor systems to help protect the conveyor belt and extend its lifespan. The Impact Bed is a support mechanism located underneath the conveyor belt at the loading point where materials are dropped onto the belt to absorb the impact energy from the material being loaded onto the belt, reducing the stress on the belt and preventing damage.
The Wear Strip is a replaceable strip or liner typically made of a durable material such as Polystone 7000. This strip is designed to withstand the friction and abrasion caused by the sliding and impact of the material on the conveyor belt.
Low Friction – Plastics have a low co-efficient of friction, therefore reducing the drag forces, and energy to drive the conveyor belt, as well as lower loads on the structure.
Abrasion resistance – materials such as Polystone 7000 AST have superior abrasion resistance, which is imperative for maximizing the wear life of these replacement items.
High Speed – Specially formulated materials such as Ticomp HVM, has been designed to operate with belts speeds of 6 m/s.
Reduced wear – In addition to the long service life of plastic wear strips, they also minimise the wear and longevity of the conveyor belt.
Impact Absorption - The primary purpose of an impact bed is to absorb the impact energy generated when materials are dropped onto the conveyor belt. Plastic wear strips contribute to this by providing a cushioning effect, reducing the force transmitted to the conveyor belt and minimising the risk of damage.
Dotmar has qualified engineers that can provide direct support with plastic conveyor impact bed wear strips.
Traditional Impact Bed Wear Strips
These are fastened direct to the bed structure
Rubber Backed Wear Strips
The rubber provides additional impact absorption, which can replace springs used in the frame structure.
High Speed Wear Strips
Design for conveyor speeds of 6 m/s, where the PV values exceed those of traditional Impact bed wear strip materials.
Material selection is a critical consideration when choosing a plastic for conveyor impact bed wear strips, as it directly influences the performance, durability, and maintenance requirements of this component. Here are some key material selection considerations for conveyor impact bed wear strips:
Conveyor Belt Speed
The conveyor belt speed is one of the most important factors that influences materials selection. Traditional materials are suitable up to 3 m/s, but as belt speeds increase to achieve appropriate service life a material such as Ticomp HVM is required.
FRAS Regulatory Requirements
Does the application have regulatory requirements? The main potential requirement may be meeting the FRAS properties that allow it to comply with MDG3608 for underground coal mining.
Abrasion Resistance
The material should exhibit high abrasion resistance to withstand the wear and tear caused by the sliding and impact of materials on the conveyor belt. Materials like Polystone 7000 AST are known for their excellent abrasion resistance.
