PTFE Coated Glass Fabric – Tortilla and Flat Bread baking Applications

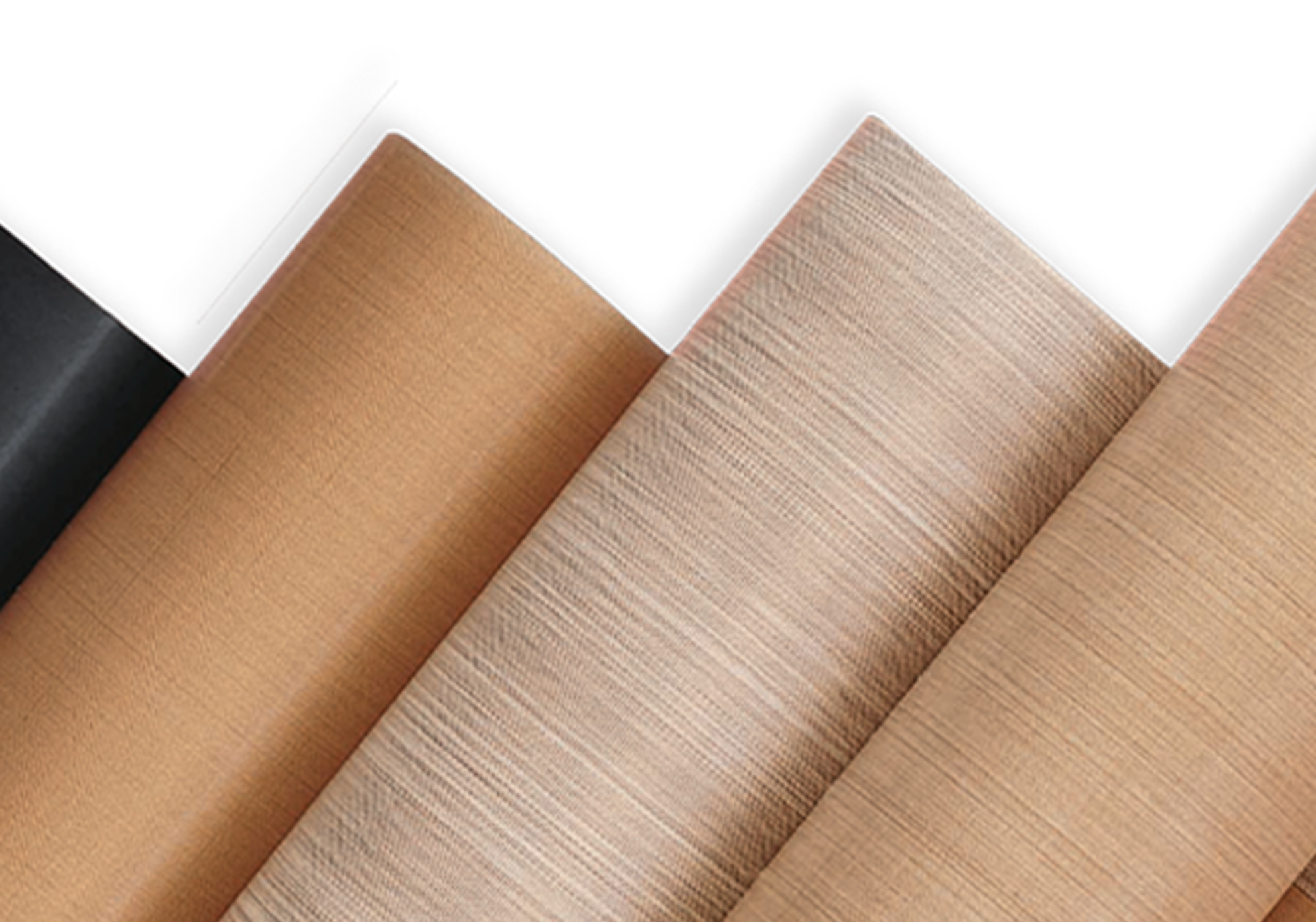

PTFE Coated glass fabric combines woven fiberglass with a PTFE coating which together offer dimensional stability, tensile strength, heat resistance, non-stick surface, low friction and chemical resistance. This material offers key properties that are relevant to tortilla factories that include.

Continuous temperature resistance.
Extremely non-stick.
Food-contact safe.
Low coefficient of friction.
Resistance to oils, fats, moisture, and cleaning chemicals.

These characteristics make it uniquely suited to tortilla processing – where hot, sticky, oily dough must move continuously at high speeds.

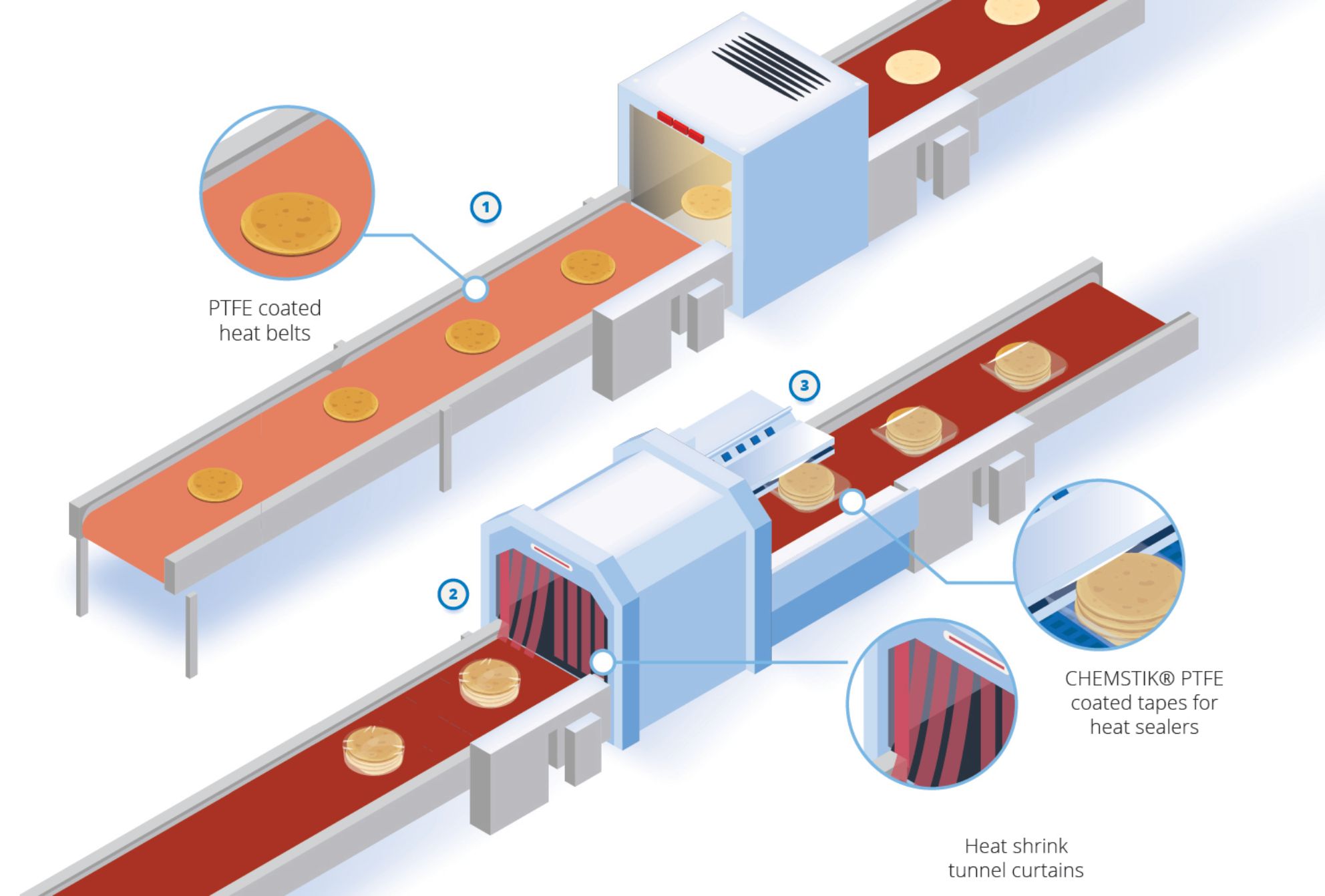

Please see below for a simple table explaining the tortilla factory process steps and where PTFE Coated Glass fabric is used.

Process Step	Typical Equipment	How PTFE Coated Glass Fabric is used	Why PTFE Coated Glass Fabric is used
Dough discharge & portioning	Dough divider, rounder	Conveyor belts or transfer sheets	Prevents sticky dough from adhering; reduces flour dusting
Dough ball conveying	Light conveyors	PTFE Conveyor belts	Low friction handling of wet, sticky dough
Dough pressing / sheeting	Heated or cold presses, rollers	Press platen covers, release sheets	Instant dough release, uniform tortilla shape
Press exit transfer	Short transfer conveyors	PTFE belts	Prevents tearing or stretching of freshly pressed tortillas
Pre-bake transfer	Conveyor leading to oven	Open or mid-mesh PTFE belts	Maintains shape, handles heat creep

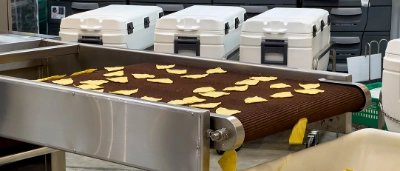

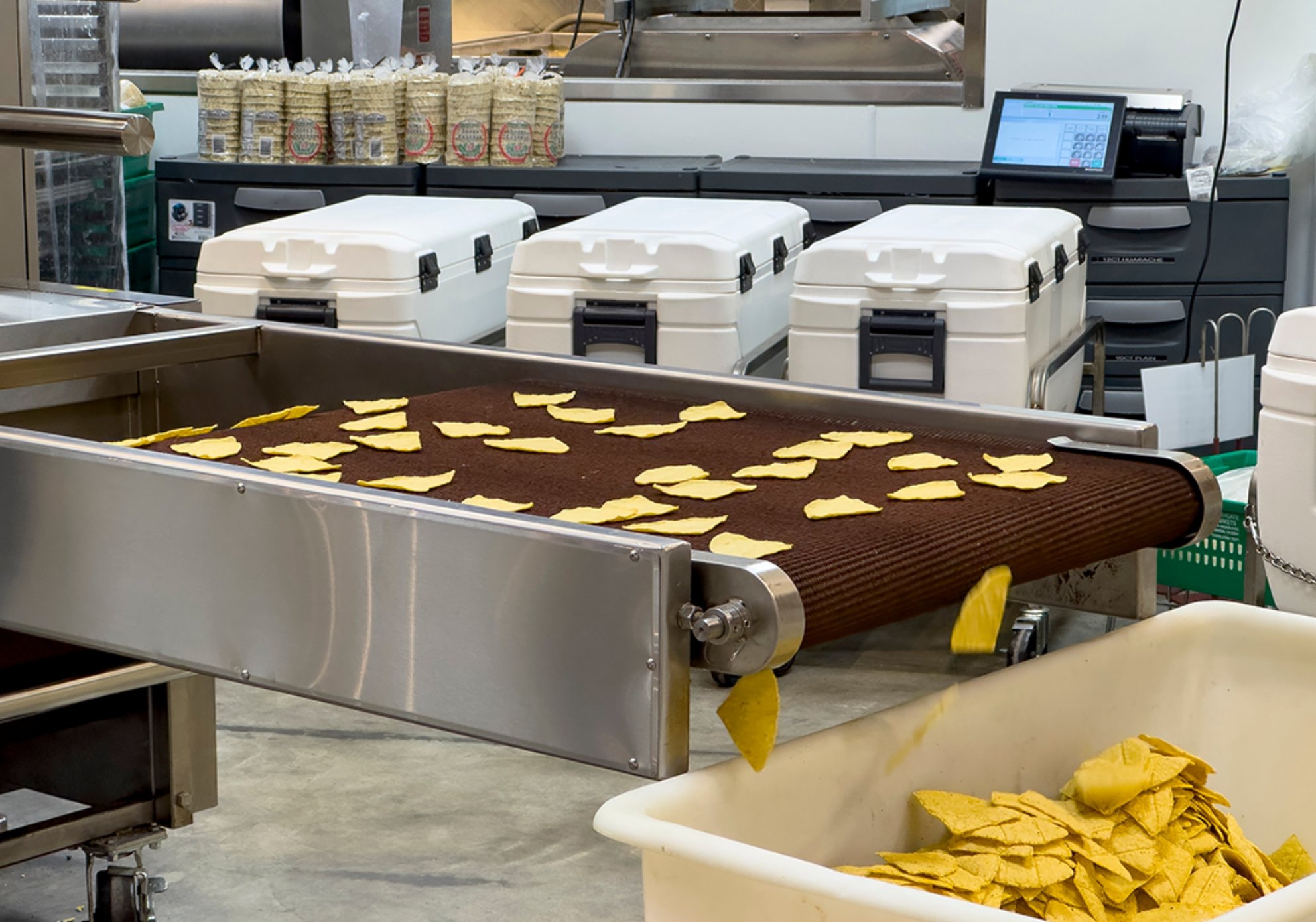

Oven baking (zone 1)	Tunnel oven	Open-mesh PTFE conveyor belts	High-temp resistance, even heat exposure
Tortilla flipping	Flip station	PTFE belts or sleeves	Clean release during rapid directional change
Oven baking (zone 2)	Tunnel oven	PTFE belts	Does not absorb oil or moisture
Final bake/ blistering	High-heat zone	Tighter weave PTFE belts	Surface support, controlled heat transfer
Oven discharge	Exit conveyor	PTFE belts	Tortillas release easily while still hot
Cooling	Ambient or forced-air cooling conveyor	Open-mesh PTFE belts	Steam escape without sticking
Stacking & counting	Stackers, indexing conveyors	PTFE belts	Accurate indexing, no clinging
Packaging feed	Flow wrapper or bagger infeed	PTFE belts	Clean transfer, no oil absorption
Auxiliary components	Guides, rollers, curtains	PTFE tapes, sleeves, flaps	Reduce buildup and wear points

In summary, PTFE‑coated glass fabrics play a foundational role in modern tortilla manufacturing by enabling smooth, reliable processing from pressing through baking, cooling, and packaging. Their unique combination of high‑temperature resistance, non‑stick performance, dimensional stability, and ease of cleaning allows sticky, high‑moisture dough and freshly baked tortillas to be conveyed, heated, and handled without tearing, buildup, or contamination. By replacing flour dusting, release oils, and less durable belt materials, PTFE‑coated glass fabrics improve product consistency, increase line efficiency, reduce sanitation downtime, and support continuous high‑speed production—making them an essential material
